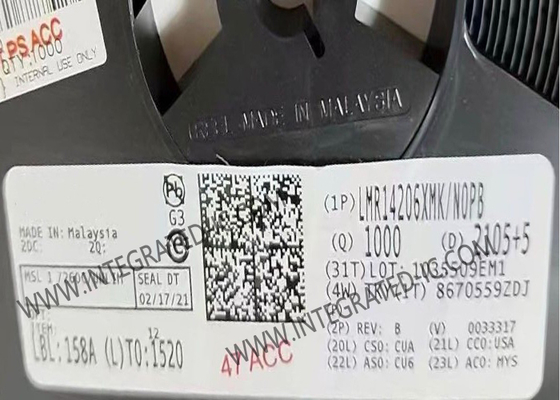

LMR14206XMK Integrated Circuit Chip 600mA 1.25MHz Step-Down Voltage Regulator

LMR14206XMK is a PWM DC/DC buck (step-down) regulator. With a wide input range from 4.5V-42V, they are suitable for a wide range of applications such as power conditioning from unregulated sources. They feature a low RDSON (0.9Ω typical) internal switch for maximum efficiency (85% typical). Operating frequency is fixed at 1.25 MHz allowing the use of small external components while still being able to have low output voltage ripple. Soft-start can be implemented using the shutdown pin with an external RC circuit allowing the user to tailor the softstart time to a specific application.

• Input Voltage Range of 4.5V to 42V
• Output Voltage Range of 0.765V to 34V
• Output Current up to 0.6A
• 1.25 MHz Switching Frequency
• Low Shutdown Iq, 16 µA Typical
• Short Circuit Protected
• Internally Compensated
• Soft-Start Function
• Thin 6-Pin SOT Package (2.97 x 1.65 x 1mm)
• Fully Enabled for WEBENCH® Power Designer

• Tight Accuracy for Powering Digital ICs
• Extremely Easy to Use
• Tiny Overall Solution Reduces System Cost

• Point-of-Load Conversions from 5V, 12V, and 24V Rails
• Space Constrained Applications
• Battery Powered Equipment
• Industrial Distributed Power Applications
• Power Meters
• Portable Hand-Held Instruments

A: Yes, all products are original, new original import is our purpose.

A: We are ISO 9001:2015 Certified Company and member of ERAI.

A: Yes, we support sample order and small order. Sample cost is different according to your order or project.

A: We use express to ship, such as DHL, Fedex, UPS, TNT, EMS. We can also use your suggested forwarder. Products will be in good packing and ensure the safety and we are responsible to product damage to your order.

A: We can ship stock parts within 5 working days. If without stock, we will confirm lead time for you based on your order quantity.
