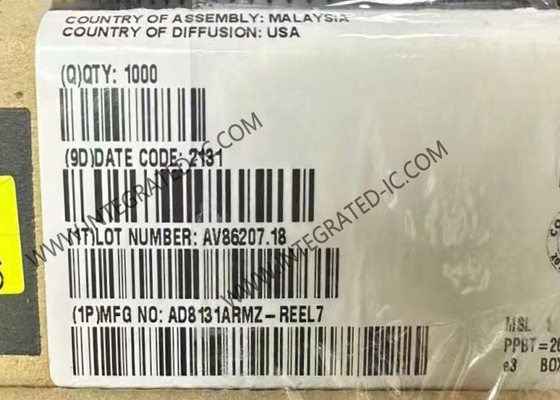

AD8131ARMZ Integrated Circuit Chip Low Cost High Speed Differential Driver
Product Description Of AD8131ARMZ
AD8131ARMZis a differential or single-ended input to differential output driver requiring no external components for a fixed gain of 2. The AD8131ARMZ is a major advancement over op amps for driving signals over long lines or for driving differential input ADCs. The AD8131ARMZ has a unique internal feedback feature that provides output gain and phase matching that are balanced to –60dB at 10MHz, reducing radiated EMI and suppressing harmonics. Manufactured on ADI's next generation of XFCB bipolar process, the AD8131 has a –3 dB bandwidth of 400 MHz and delivers a differential signal with very low harmonic distortion.
Specifications Of AD8131ARMZ
|
Amplifier Type
|
Differential
|
|
Number of Circuits
|
|
|
Output Type
|
|
|
Slew Rate
|
|
|
-3db Bandwidth
|
|
|
Current - Input Bias
|
|
|
Voltage - Input Offset
|
|
|
Current - Supply
|
|
|
Current - Output / Channel
|
|
|
Voltage - Supply Span (Min)
|
|
|
Voltage - Supply Span (Max)
|
|
|
Operating Temperature
|
|
Features Of AD8131ARMZ
High Speed:
400 MHz –3 dB Full Power Bandwidth
2000 V/µs Slew Rate
Fixed Gain of 2 with No External Components
Internal Common-Mode Feedback to Improve Gain and Phase Balance: –60 dB @10 MHz
Separate Input to Set the
Common-Mode Output Voltage
Low Distortion:
68 dB SFDR @ 5 MHz 200 Ω Load
Power Supply Range +2.7 V to ±5 V
Applications Of AD8131ARMZ
Video line driver
Digital line driver
Low power differential ADC driver
Differential in/out level shifting
Single-ended input to differential output driver
