পণ্যের বিবরণ:
|
অংশ নম্বর: | AM3354BZCZ80 | কোর: | এআরএম কর্টেক্স এ৮ |
---|---|---|---|
কোর সংখ্যা: | 1 কোর | সর্বাধিক ঘড়ির ফ্রিকোয়েন্সি: | 800 মেগাহার্টজ |
ডেটা বাসের প্রস্থ: | 32 বিট | I/O ভোল্টেজ: | 1.8 V, 3.3 V |

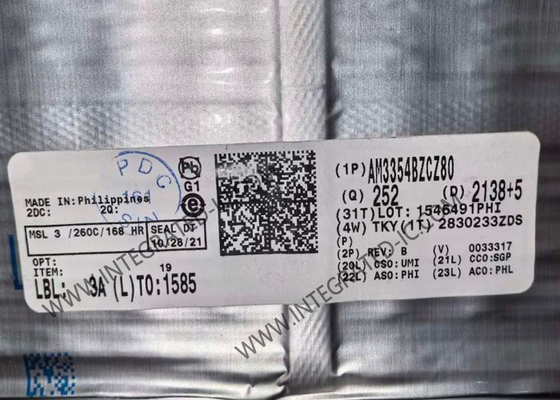

AM3354BZCZ80 Microcontroller MCU Sitara Processors 32Bit MPU Arm Cortex-A8 Microprocessors
Product Description Of AM3354BZCZ80
AM3354BZCZ80 is 32-Bit microprocessors, based on the ARM Cortex-A8 Sitara processor, it is enhanced with image, graphics processing, peripherals and industrial interface options such as EtherCAT and PROFIBUS. The devices support high-level operating systems (HLOS).
Specification Of AM3354BZCZ80
Series
|
Sitara™
|
Core Processor
|
ARM® Cortex®-A8
|
Number of Cores/Bus Width
|
1 Core, 32-Bit
|
Speed
|
800MHz
|
Co-Processors/DSP
|
Multimedia; NEON™ SIMD
|
RAM Controllers
|
LPDDR, DDR2, DDR3, DDR3L
|
Graphics Acceleration
|
Yes
|
Display & Interface Controllers
|
LCD, Touchscreen
|
Ethernet
|
10/100/1000Mbps (2)
|
USB
|
USB 2.0 + PHY (2)
|
Voltage - I/O
|
1.8V, 3.3V
|
Operating Temperature
|
0°C ~ 90°C (TJ)
|
Security Features
|
Cryptography, Random Number Generator
|
Mounting Type
|
Surface Mount
|
Package / Case
|
324-LFBGA
|
Supplier Device Package
|
324-NFBGA (15x15)
|
Additional Interfaces
|
CAN, I2C, McASP, McSPI, MMC/SD/SDIO, UART
|
Features Of AM3354BZCZ80
Up to 1-GHz Sitara™ ARM® Cortex®-A8 32‑Bit RISC Processor
NEON™ SIMD Coprocessor
32KB of L1 Instruction and 32KB of Data Cache With Single-Error Detection (Parity)
256KB of L2 Cache With Error Correcting Code (ECC)
176KB of On-Chip Boot ROM
64KB of Dedicated RAM
Emulation and Debug - JTAG
Interrupt Controller (up to 128 Interrupt Requests)
On-Chip Memory (Shared L3 RAM)
64KB of General-Purpose On-Chip Memory Controller (OCMC) RAM
Accessible to All Masters
Supports Retention for Fast Wakeup
12KB of Shared RAM With Single-Error Detection (Parity)
Three 120-Byte Register Banks Accessible by Each PRU
Interrupt Controller (INTC) for Handling System Input Events
Up to Six UARTs
Up to Two Master and Slave McSPI Serial Interfaces
Up to Three I2C Master and Slave Interfaces
Up to Four Banks of General-Purpose I/O (GPIO) Pins
Up to Three External DMA Event Inputs that can Also be Used as Interrupt Inputs
Applications Of AM3354BZCZ80
Gaming Peripherals
Home and Industrial Automation
Consumer Medical Appliances
Printers
Smart Toll Systems
Connected Vending Machines
Weighing Scales
Educational Consoles
Advanced Toys
