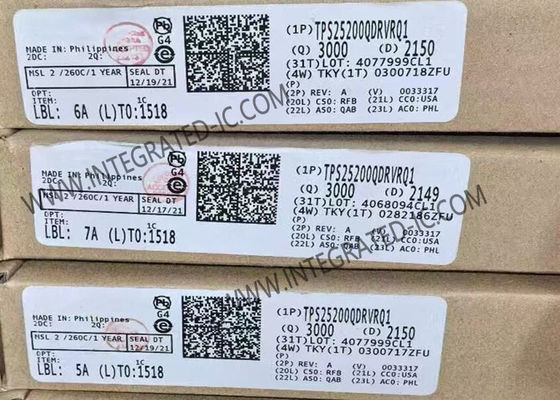

TPS25200QDRVRQ1 Integrated Circuit Chip Automotive eFuse WSON6 Electronic Fuse Regulator

TPS25200QDRVRQ1 Integrated Circuit Chip Automotive eFuse WSON6 Electronic Fuse Regulator​

Product Description Of TPS25200QDRVRQ1

TPS25200QDRVRQ1 is a 5V eFuse with a precision current-limit and overvoltage clamp. The device provides robust protection for load and source during overvoltage and overcurrent events.
TPS25200QDRVRQ1 is an intelligent protected load-switch with a VIN value tolerant to 20 V. In the event that an incorrect voltage is applied at the IN pin, the output clamps to 5.4 V to protect the load. If the voltage at the IN pin exceeds 7.6 V, the device disconnects the load to prevent damage to the device, load, or both.

Specification Of TPS25200QDRVRQ1

Features Of TPS25200QDRVRQ1

2.5V to 6.5V Operation
20V Continuous VIN (Absolute Maximum)
7.6V Input Overvoltage Shutoff
5.25V to 5.55V Fixed Overvoltge Clamp
0.6µs Overvoltage Lockout Response
3.5µs Short-Circuit Response
67mΩ High-Side MOSFET
Accurate 2.5A Minimum, 2.9A Maximum and 2.1A Minimum, 2.5A Maximum Setting (Including Resistor)
±6.3% Current-Limit Accuracy at 2.7A
Reverse Current Blocking While Disabled
Built-in Soft Start
Pin-to-Pin Compatible with TPS2553

Applications Of TPS25200QDRVRQ1

Automotive USB Port Protection
USB Power Switch
USB Slave Devices
